The Royal Navy faces a decade of difficult choices. Between sustaining the Dreadnought programme, completing the Type 26 frigate build, introducing Type 31, and designing the Multi-Role Strike Ship (MRSS), the surface fleet is already heavily committed.
Into this crowded agenda, BAE Systems has put forward the Adaptable Strike Frigate (ASF), a concept that blends frigate characteristics with amphibious and modular capabilities.
BAE frames the project in ambitious terms. “Embracing adaptability whilst credibly delivering the complex self-defence capability required in the Maritime environment, BAE Systems has worked with industrial colleagues to develop the Adaptable Strike Frigate design concept to promote the technologies of future warships.”

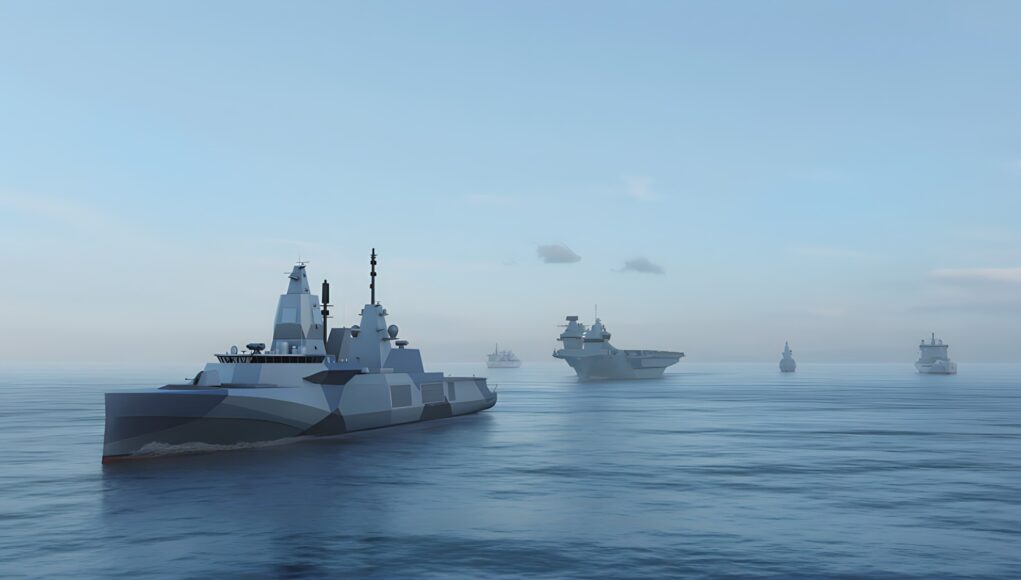

At around 130 metres long and displacing roughly 6,000 tonnes, the ASF would sit between the high-end Type 26 and lighter offshore patrol vessels. Its forward section looks conventional enough, with provision for a medium gun, vertical launch cells and sensor arrays. The aft half, however, is dominated by a wide mission block. Here a Chinook-capable flight deck sits above a cavernous hangar, with four boat bays along the flanks and a stern ramp able to launch craft or unmanned vehicles.
The mission bay is the heart of the concept. BAE highlights that “with modularity at its core, Adaptable Strike Frigate has been designed to accommodate over 20+ TEUs.” These containers could be fitted with missile batteries, minehunting drones, command suites or humanitarian supplies, with specialist handling systems allowing them to be moved and deployed at sea. The ability to switch payloads rapidly is pitched as the antidote to fleets locked into single-mission hulls.
A system of systems
The ASF has been described as a “system of systems vision.” The idea is that the ship acts as a mothership and command node, operating crewed helicopters alongside Uncrewed Surface Vehicles (USVs), Uncrewed Underwater Vehicles (UUVs) and Uncrewed Aerial Vehicles (UAVs). BAE points out that it will be “optimised for lethality and adaptable mission system requirements,” with the flexibility to host both established weapons and rapidly emerging technologies.
The ship’s digital backbone is central to this. According to BAE, “cloud based Mission Systems will be at the heart of future warfare to deliver machine speed warfare at the speed of relevance”. I’m not a fan of the terminology here but you get the gist.
The ASF, say BAE, is designed to integrate into a wider combat cloud, fusing data from its own sensors and weapons with information collected by disaggregated autonomous systems. The intent is to create a warship that is less about the sum of its onboard hardware and more about its ability to orchestrate a network of off-board assets.
Lean crew, green propulsion
Crewing is another deliberate departure. BAE notes that “automation and a high level of resilient systems integration” would allow the ship to sail with a small core complement, perhaps around 60, freeing up space for embarked specialists or an augmented military force. This mirrors Royal Navy ambitions to cut manpower demands across future surface combatants.
Propulsion is pitched as both agile and environmentally aligned. ASF incorporates “an innovative propulsion design to allow high manoeuvrability with sprint capability, whilst being aligned to NetZero targets.” The idea is to combine efficiency for long deployments with the burst speed needed to manoeuvre in littoral zones.
Type 32 or MRSS?
The strategic question is where ASF fits. The Royal Navy has outlined Type 32 as a future general-purpose frigate designed to act as a platform for autonomous systems and to support Littoral Response Groups. On paper, the ASF maps neatly to those aspirations. Its modular payloads, autonomous integration, small crew and ability to support raiding parties all align with the Type 32 vision.
The MRSS programme, by contrast, is aimed at building large amphibious ships in the 20,000–30,000 tonne class, each with a well dock and the ability to deploy landing craft, vehicles and command facilities for brigade-scale operations. That scale is beyond what a 6,000-tonne frigate can deliver. ASF could land commando-sized forces and launch uncrewed craft, but not much more.
Industrial and strategic context
BAE, on their website, highlights collaboration. “In developing the Adaptable Strike Frigate concept, BAE Systems has collaborated with colleagues across both the commercial and defence industry to explore innovative concepts and technologies that will shape the conduct of platform design for future operations.” This aligns with wider Ministry of Defence messaging about shipbuilding as a driver of industrial capacity and international partnerships.
Yet the financial reality cannot be ignored. Both Type 32 and MRSS have been identified by the National Audit Office as high-risk in affordability terms. Even if the Royal Navy wants both, securing funding for a new class alongside Dreadnought, Type 26 and Type 31 will be difficult.
A glimpse of the future fleet
What the ASF does show is how British industry views the future of naval warfare. A frigate that doubles as an unmanned systems mothership, built around modular payloads, lean crewing and a digital backbone, signals a break from the traditional template of steel and missiles.
Whether it is ever built or not, the concept points toward a Royal Navy that expects to fight through networks of autonomous systems, with frigates and amphibious ships acting as flexible command and launch hubs.
“Adaptable Strike Frigate: embracing technology to deliver future naval capability at the speed of relevance,” is how BAE summarises its proposal. For the Royal Navy, the challenge is less about vision than resources. The ASF makes sense as a Type 32 contender, or whatever results rom the Type 32 idea, but the question is whether Britain can afford it alongside the rest of its naval commitments.
