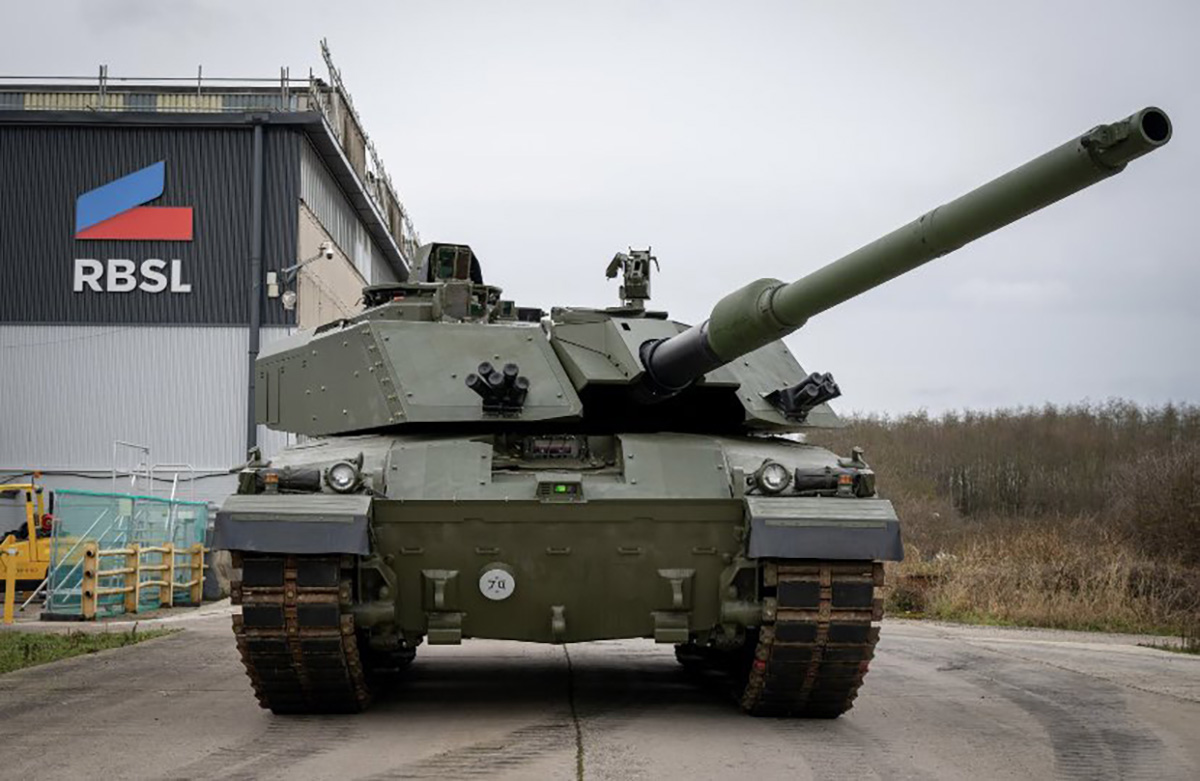

The United Kingdom has officially introduced the prototype of its latest main battle tank, the Challenger 3.
The announcement was made following the prototype’s unveiling at the IQPC International Armored Vehicles conference in London.
A big leap towards delivering the @BritishArmy’s next Main Battle Tank #capability has been achieved with the first pre-production #Challenger3 going into trials in the coming weeks.
Full story: https://t.co/bLHCUiOIgq pic.twitter.com/1Lu4ygdgma— RBSL (@RH_BAES_Land) January 23, 2024
The project is a collaborative venture between Rheinmetall of Germany and BAE Systems of Britain and is expected to enter service in 2027.
“The Challenger 3 platform will be fitted with a new 120mm L55A1 smoothbore gun built by Rheinmetall, enabling the use of the most advanced ammunition available. Next Generation UK-sovereign modular armour, a fully digitised turret and integration of Trophy Medium Variant APS onto the platform will protect against rocket propelled grenades and anti-tank missiles and provide the British Army with a step change in war-fighting capability.”
Key Specifications of the Challenger 3:
- Main Armament: Rheinmetall’s 120mm L55A1 smoothbore cannon, providing superior ballistic performance with increased muzzle velocity and penetration capabilities.
- Ammunition Compatibility: Designed to use single-piece ammunition, allowing compatibility with a broad spectrum of NATO-standard ammunition types, including advanced DM63 and DM73 armour-piercing fin-stabilised discarding sabot (APFSDS) rounds.
- Ammunition Capacity: Capacity for 31 rounds, a reduction from 49 in the Challenger 2, due to the space requirements of the single-piece ammunition.
- Optical/Targeting Package: Identical to the British Army’s Ajax tracked infantry fighting vehicles, including the Thales Orion and Day/Night Gunner And Panoramic Sight (DNGS T3).
- Modular Armour System: For enhanced protection, with provisions for an active protection system such as the Israeli-made Trophy APS.
- Mobility Enhancements: Benefiting from the Heavy Armor Automotive Improvement Project (HAAIP), which includes improvements such as an enhanced engine, new suspension, and an advanced cooling system.
However, during a Defence Committee session on November 15, 2023, concerns were raised about the UK’s capacity to upgrade the required number of Challenger 2 tanks, amidst significant budget cuts and past decisions affecting the availability of tanks in a ready state. MPs noted challenges reminiscent of previous defence projects and emphasized the potential for delays in the Challenger 3 upgrade programme.
Despite these hurdles, the British Army remains committed to enhancing its armoured capabilities through the Challenger 3, aiming to secure operational readiness and superiority until at least 2040.
Challenger 3 Deputy Project Manager at RBSL, Nick Berchem said:
“Designed with the crew’s safety, operational effectiveness, and comfort at its heart, and with the users’ advice at every stage, I am sure it will prove to be a very potent and popular addition to the British army’s inventory. It is hugely exciting and very satisfying to be part of the team bringing this immensely capable tank to life.”
RBSL is playing a key part in delivering the Land Industrial Strategy through its Challenger 3 programme, ensuring it benefits from the best of British engineering and manufacturing, whilst also sustaining valuable skills across the country. The multi-million pound investment in its Telford facility, and the creation of jobs within RBSL and the UK supply chain, contributes towards national industrial resilience, and the social value and ‘levelling up’ aspirations the UK Government has set out.”
Colonel Will Waugh, Senior Responsible Owner of the Army’s Armour (Main Battle Tank) Programme, said:
“Delivery of the first pre-production Challenger 3 and the commencement of trials marks a critical milestone on the journey to the Army’s modernised Main Battle Tank capability. Challenger 3 will be at the heart of the Army’s Armoured Brigade Combat Teams, alongside Ajax and Boxer, under Future Soldier. Events in Ukraine have underscored the need for credible warfighting capabilities. The Army’s Armoured Brigade Combat Teams, with Challenger 3 at their centre, are key to the UK’s contribution to NATO’s deterrence.”
Major General Darren Crook, Director Land Equipment for Defence, Equipment & Support said:
“In an increasingly uncertain and dangerous world, our priority is to deliver to the Army the capability it needs to deliver Future Soldier and be more lethal on the Battlefield. I am immensely proud of the work the whole team has undertaken: the Army, DE&S and RBSL working together to deliver the first pre-production Challenger 3. This marks a critical milestone in our delivery of this impressive capability to the British Army and will provide our soldiers with a world-class Main Battle Tank made here in the UK. It also demonstrates the centrality of the Land Industrial Strategy, with the UK increasingly developing a highly-skilled industrial base and maintaining strategic advantage through our Industry partners such as RBSL.”
