The Defence Command Paper released today, titled ‘Defence in a Competitive Age‘, confirms that the UK will develop a new destroyer type, the Type 83.
The white paper states:
“The concept and assessment phase for our new Type 83 destroyer which will begin to
replace our Type 45 destroyers in the late 2030s.”

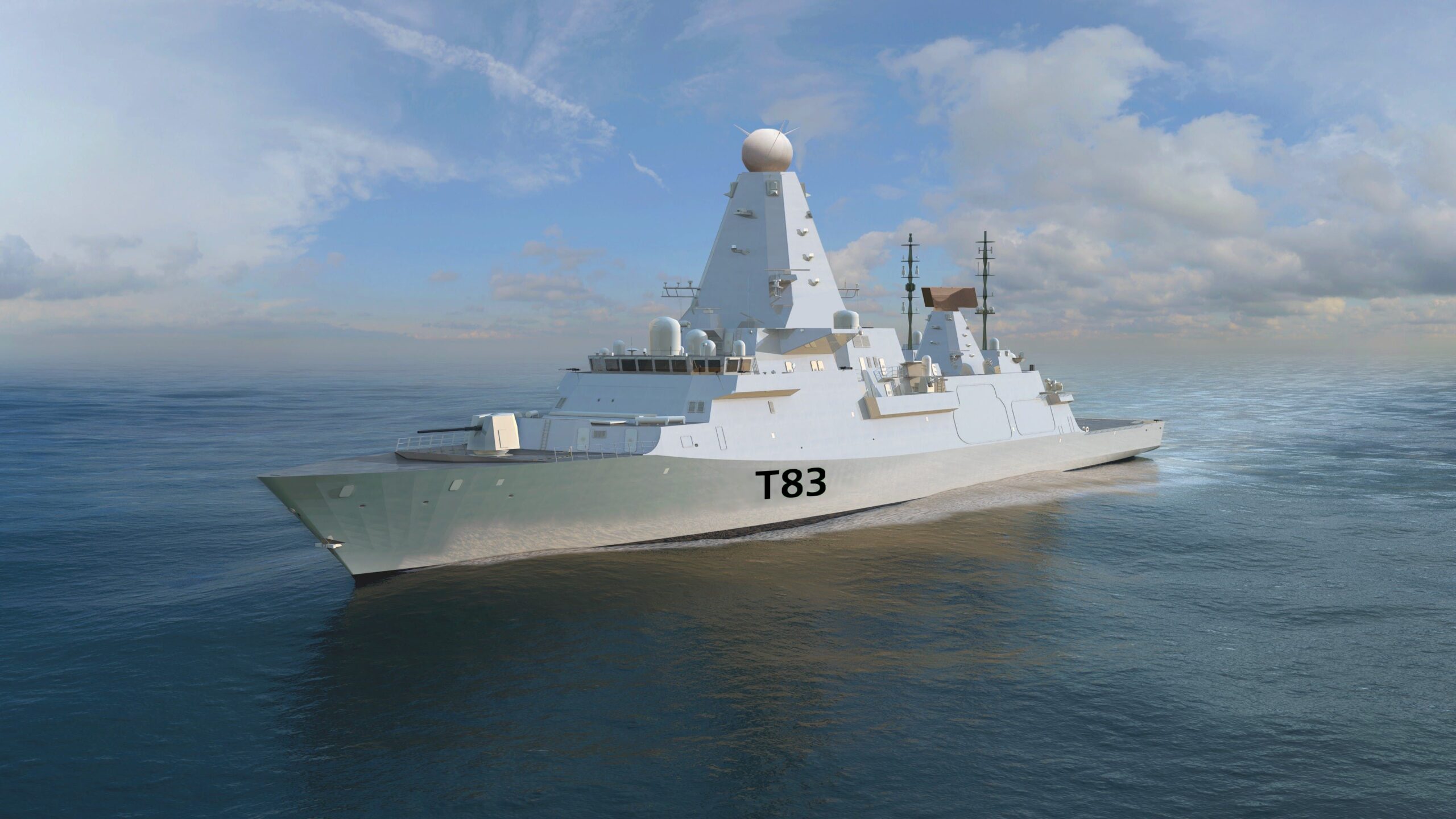

What might the Type 83 Destroyer look like?
The Type 45 Destroyer replacement is just an early concept at this stage but a variant of the Type 26 Frigate has been officially being considered for the job.
Last year the UK Defence Journal spoke to Paul Sweeney, former MP for Glasgow North East and former shipbuilder and we were told that consideration is already being given to the development of an Anti-Air Warfare variant of the Type 26, a variant that could function as a future replacement for the Type 45 Destroyer fleet – the programme now referred to as Type 83.
For a little bit of context, Paul Sweeney is a Scottish politician and was the Member of Parliament for Glasgow North East until the last election. More importantly for the purposes of a discussion on shipbuilding, he was formerly employed by BAE in Glasgow. Paul has worked with the APPG for Shipbuilding which published the results of inquiry into the Government’s National Shipbuilding Strategy, taking evidence from a range of maritime security stakeholders and industry.
It is understood that the Ministry of Defence have an aspiration is to achieve continuous shipbuilding with the Type 26 programme in Glasgow beyond the current planned number of eight vessels.
Sweeney told me after attending the steel cutting ceremony for the future HMS Cardiff:
“It is clear that we now have a unique opportunity to create a truly international naval shipbuilding alliance with Canada and Australia with Type 26 (both countries have purchased the design) – and consideration is already being given to the development of an Anti-Air Warfare variant of the Type 26 as an eventual replacement for Type 45 – known currently as T4X.
The aspiration is to achieve continuous shipbuilding with the Type 26 programme in Glasgow beyond the current planned number of eight vessels.”
We’ll publish more about the Type 83 as it becomes available.
