Acoustic performance is paramount in modern naval warfare, especially for ships engaged in anti-submarine warfare, such as the Type 26 Frigate.

A detailed presentation by Sir Simon Lister, Managing Director of BAE Systems’ Naval Ships business, at the yard in Glasgow shed a great deal of light on the engineering behind ensuring that the Type 26 Frigate operates with a minimal acoustic signature.

This pursuit of silence is a technical challenge but it is also a crucial tactical advantage. Lister emphasised the importance of acoustic optimisation by illustrating how even the flow of fluid through pipes can impact the ship’s stealth capabilities. By isolating pipes with rubber and carefully designing brackets to minimise noise transmission, the ship reduces the risk of detection by enemy submarines and ensures its own sonar operations remain unhindered.

The attention to detail extends beyond propulsion systems and firefighting mechanisms to encompass every part of the ship, including waste management infrastructure.

Designing Around the Ship

The ability to visualise and design around the ship in such detail offers significant advantages. For one, it facilitates a more integrated and holistic approach to shipbuilding, where the interdependencies of different systems and components are fully considered. A manufacturer, for example, can see how best to install a component without having to visit the ship to look at flat, 2D plans.

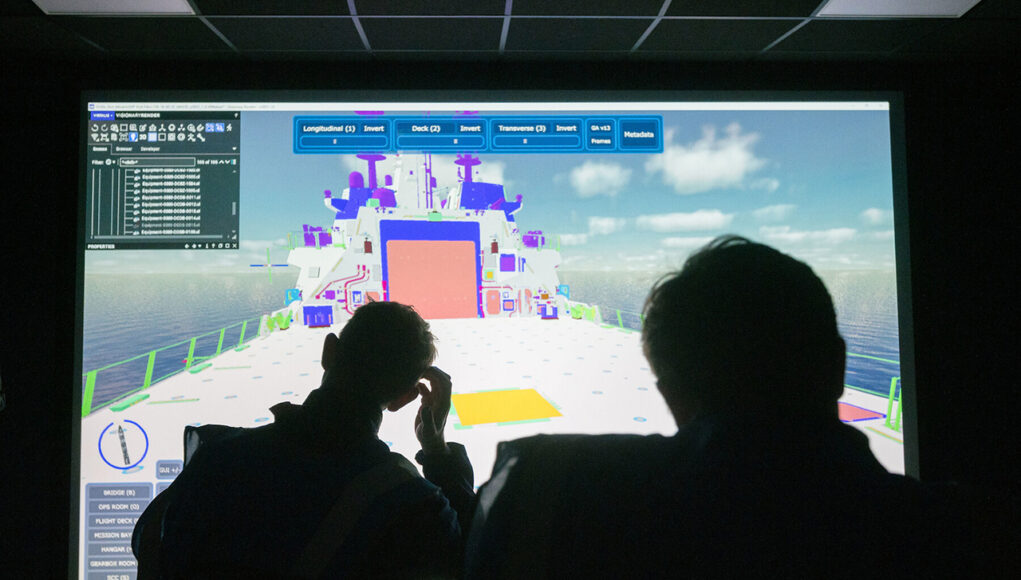

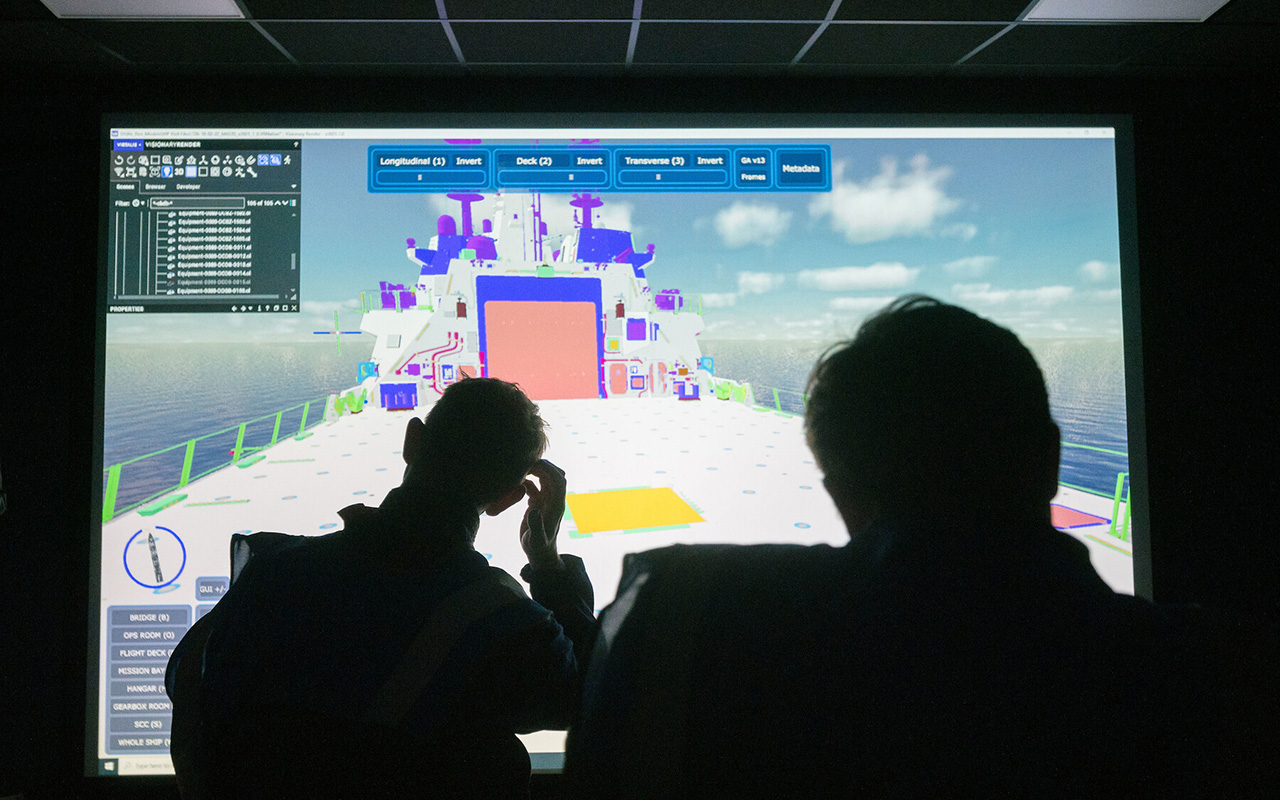

The granular detail captured within the visualisation suite at the BAE Systems shipyard in Glasgow is truly impressive. This level of detail underscores the power and precision of digital twin technology in modern shipbuilding, and the suite’s capability to simulate every aspect of the ship’s design, down to the smallest valve, exemplifies how advanced visualisation tools are revolutionising naval engineering and design processes.

Controlled and Restricted Environment for IP Protection

The controlled and restricted environment of the visualisation suite addresses another critical aspect of modern naval design: the protection of intellectual property (IP) and sensitive information. The ability to keep the ship’s design and other proprietary information secure in a secure environment cannot be overstated.

This secure environment ensures that while collaboration is facilitated among authorised personnel, access to the design and its detailed components is tightly controlled. Such security measures are essential for maintaining the integrity of the design process and protecting the technological advancements that give the Type 26 Frigate and similar projects their edge.

Furthermore, the secure sharing of information and updates, as mentioned in the collaboration between teams in the UK, Canada, and Australia, ensures that innovations are shared within a trusted network, fostering cooperation without compromising security.
