Drone imagery shows the progress of a massive new ‘frigate factory’ in Glasgow.
The massive facility at Govan represents a huge boost in capability for UK naval shipbuilding.

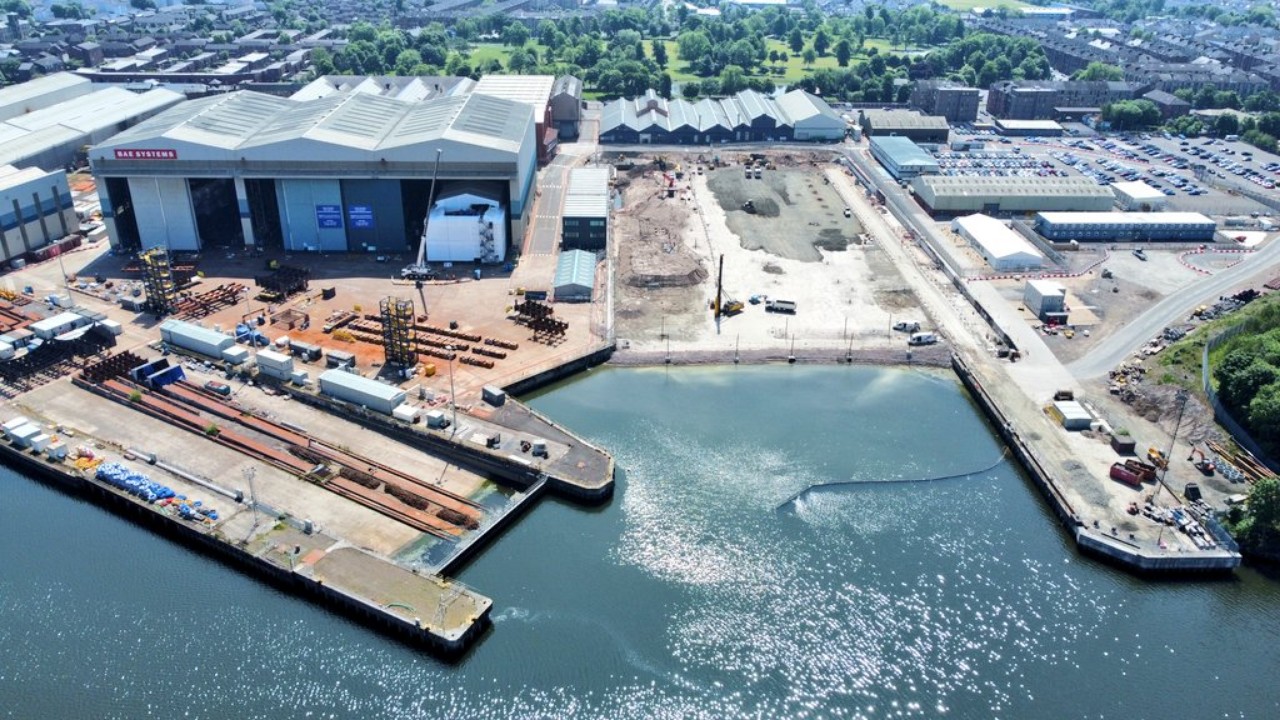

Here are some drone images showing the progress.
As always, the footage was gathered legally in adherence to UK drone legislation. I'm fully qualified, registered and insured to do this. Shots were taken from the northern bank of the river with zoom. pic.twitter.com/CDJ8VSEw7x
— George Allison (@geoallison) June 5, 2023
For the avoidance of doubt, the drone footage was obtained legally by a qualified person in adherence to UK drone legislation and guidance. In addition, the drone is insured and a flight plan was submitted using drone safety software.
Here’s how the site looked earlier in the year.
Work has started on a huge expansion of the BAE Systems yard at Govan, with excavators currently filling in the old 'wet basin' to make way for a huge new 'frigate factory'. Read more here: https://t.co/uBquNHihd9 pic.twitter.com/zsgdzkX9Lx
— UK Defence Journal (@UKDefJournal) February 14, 2023
I previously reported that planning permission had been granted for a huge new shipbuilding hall at the BAE Systems site in Govan, with work on the first ship to be built in the facility starting soon.
It is hoped that Type 26 ships 3 to 8 will be assembled in this facility, with the first two being assembled outdoors.
HMS Glasgow is shown below when she was being put together on the hard standing, adjacent to the wet basin area after she was built in sections in the existing build hall and joined together.
The new drydock/build hall would allow ships to be built indoors, protecting them against the elements and would form part of an effort to modernise the yard to make it more attractive to future orders.
Project Background
In their Govan Assembly Hall planning consultation, BAE say that at present, full ships longer than 75 metres cannot be constructed undercover at Govan, something which is a major constraint to their business.
Shown below is the current arrangement, the ‘SBOH’ is the facility in which ship hull sections are currently built before being moved outside and welded together. According to the consultation:
“As such, BAE Systems intends to develop a new ship building hall which is capable of meeting the United Kingdom’s ship building requirements. This necessitates the construction of a new ship building facility in Govan, one that will allow for at least two ships to be built simultaneously under cover and in single hull format.
The opportunity to provide a new modern ship building hall of this nature would allow BAE Systems to adopt improved shipbuilding techniques together with improved construction access and state of the art, dedicated, on-site office and amenities accommodation.”
The Ship Building Hall and Supporting Accommodation
The firm state that the shipbuilding hall will occupy part of the existing shipyard wet basin and will provide accommodation to allow for at least two ships to be built simultaneously under cover and in single hull format.
In terms of dimensions, the proposed shipbuilding hall will be approximately 81 metres wide, 170 metres long and 49 metres high to the building ridge line. This represents a massive expansion of capabilities and capacity at the yard, as let’s not forget, the original build hall will still be available for use.
