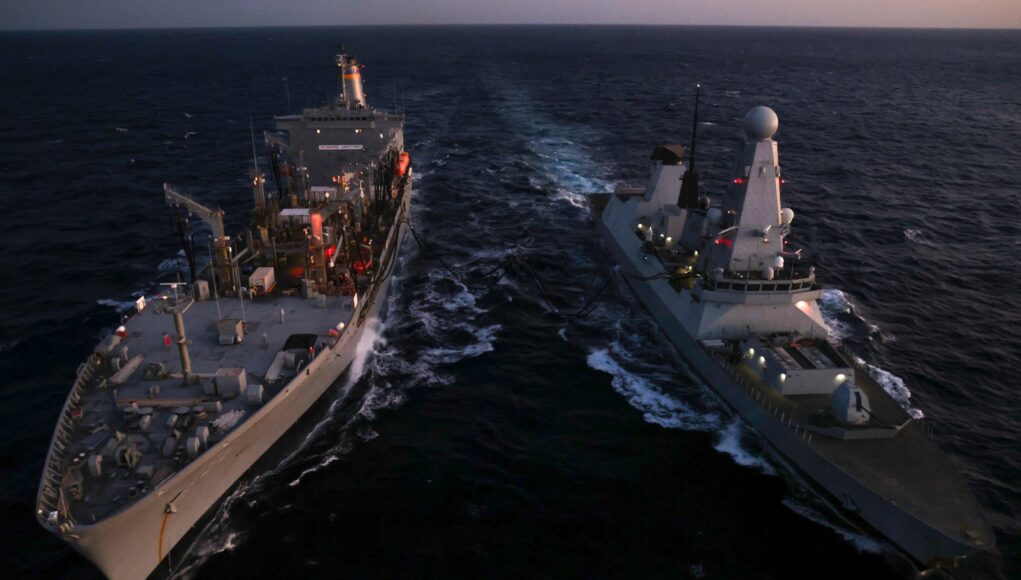

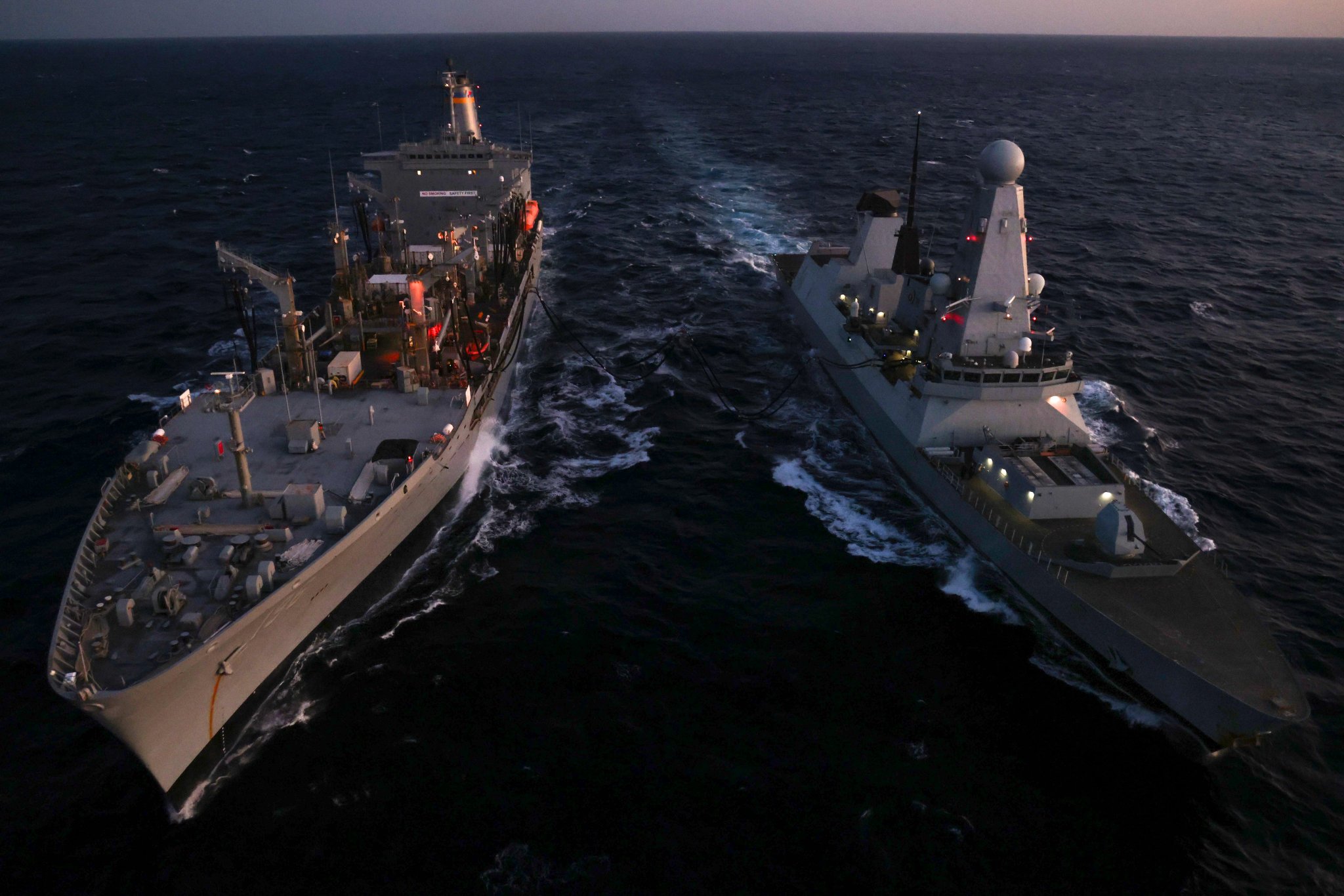

HMS Diamond, a Type 45 Destroyer, is showing visual signs of her recent and intensive combat action against Houthi drones and missiles.

Images released by the Royal Navy show the scorch marks on the warship’s vertical launch silo after the vessel fired numerous Aster missiles.

The following images show the area in detail.

And this is the above zoomed out.

The Type 45 Destroyers, also known as Daring-class destroyers, are specifically designed around the Sea Viper (PAAMS) air-defence system. Each Type 45 destroyer is equipped with a 48-cell A50 Sylver Vertical Launching System. This system is designed to accommodate a mix of up to 48 Aster 15 and Aster 30 missiles.

What actually is Sea Viper?

The Sea Viper air-defence system, an advanced missile system deployed by the Royal Navy. Known formally as the Principal Anti-Air Missile System (PAAMS), it was developed as a joint venture by France, Italy, and the United Kingdom. The system is a cornerstone of the Royal Navy’s air defence capability.

The genesis of the Sea Viper dates back to the late 1990s, as part of the collaborative effort for the ‘Common New Generation Frigate’ programme, initially encompassing the UK, France, and Italy. After disagreements, the UK departed from the frigate project but continued its commitment to the PAAMS initiative. This led to the creation of a variant specifically for the UK’s naval needs, culminating in the Sea Viper system.

Sea Viper – A guide to the missile protecting the Red Sea

Components of Sea Viper

  1. Missiles: The system employs the Aster 15 and Aster 30 missiles, known for their precision and long-range capabilities, more on those below.
  2. SAMPSON Multi-Function Radar: A key component of the PAAMS(S) variant, offering exceptional target tracking and engagement capabilities.
  3. Sylver Vertical Launching System: This allows for rapid and versatile missile deployment, crucial for responding to fast-moving aerial threats.
  4. S1850M Long-Range Radar: Provides early warning and tracking of potential threats at extended ranges.

The Sea Viper system employs the Aster 15 and Aster 30 missiles.

  • Aster 15: Weighing 310 kg and measuring 4.2 metres in length, with a diameter of 180 mm. It has a 15 kg focused fragmented warhead and a lethal radius of 2 metres. The missile is powered by a solid propellant, two-stage motor, and can reach above 30 km with a flight altitude of 13 km, achieving speeds of Mach 3.
  • Aster 30: Slightly larger, this variant weighs 450 kg and measures 4.9 metres, maintaining the same diameter. It boasts an operational range above 120 km (150 km for the Block 1 NT variant) and a flight altitude of 20 km, with maximum speeds of Mach 4.5.

Both variants use an inertial guidance system with an up-link and an active RF seeker for precise target acquisition and engagement. Their design allows for high agility and precision, making them exceptionally effective against a range of high-performance air threats.
