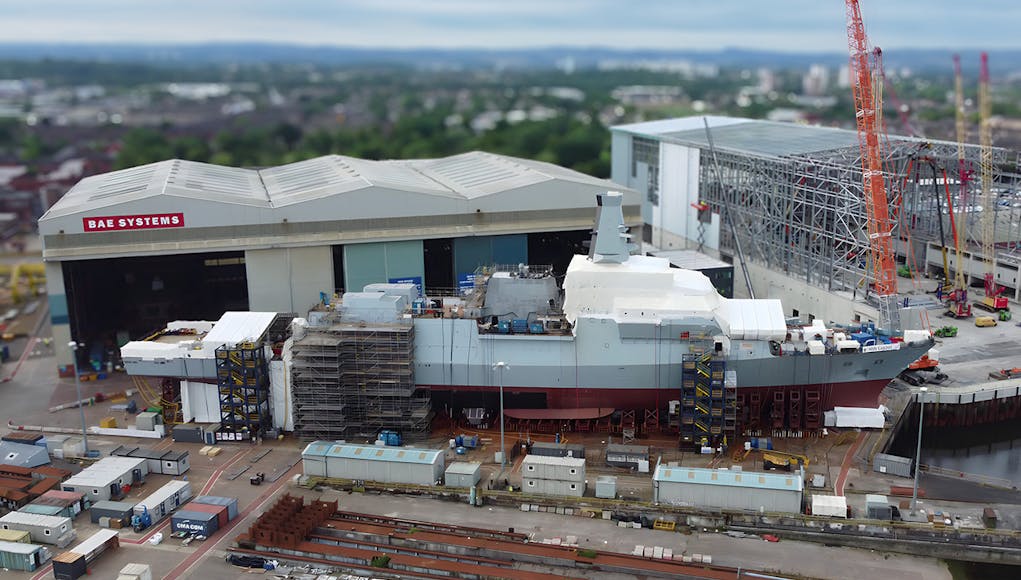

HMS Cardiff, the second of eight Type 26 Frigates, will soon be launched and enter the water for the first time.
The vessel will soon be moved onto a barge before being transported to the sheltered waters of Glenmallan to be lowered into the water. It will then be brought back upriver to Scotstoun to continue fitting out.
She will be the last of the class to have her sections integrated on the hardstand in the open air, you can read more about the build hall in my recent article here.
The Royal Navy say that when operational, the eight Type 26s will be on the front line of the fleet’s defence against hostile submarines, replacing the eight existing Type 23 frigates, which perform the same duty – only in hulls designed 30 years earlier.
“In addition to their primary role, the 26s will be able to fend off air attack with Sea Ceptor missiles, pound targets ashore with a new main 5in gun, conduct disaster relief operations, and be equipped for a range of potential operations courtesy of an adaptable mission bay for hosting equipment such as drones, minehunting technology or Royal Marines raiding teams. All eight City-class ships have been ordered from BAE with four (Belfast and Birmingham complete the initial quartet) under construction.”
You can see how the first in class, HMS Glasgow, looked as she was moved onto the barge ahead of launch.
Although construction and assembly are concentrated at BAE’s yards on the Clyde, some 120 firms and contractors are involved in the programme, which will run into the 2030s and support well over 4,000 jobs.
The Royal Navy’s version of the Type 26 frigate is equipped with cutting-edge technology. It features the Type 997 Artisan 3D search radar and Sea Ceptor (CAMM) air-defence missiles launched via 48 vertical launching system (VLS) canisters.
Additionally, it has 24 Mark 41 “strike-length VLS” cells positioned forward of the bridge, capable of launching various missiles, including the Tomahawk land-attack cruise missile and anti-submarine rockets. Designed with future threats in mind, the Type 26 is set to accommodate the Anglo-French-Italian Future Cruise/Anti-Ship Weapon.
Like the Type 23 frigate it replaces, the Type 26 is built for stealth in anti-submarine warfare, boasting an acoustically quiet hull and advanced sonar systems, including the Ultra Electronics Type 2150 bow sonar and the Sonar 2087 towed array. For defence, it’s armed with a BAE 5-inch, 62-calibre Mark 45 naval gun, two Phalanx CIWS, two 30mm DS30M Mark 2 Automated Small Calibre Guns, and a range of miniguns and machine guns.
The ship also features SEA’s Ancilia trainable decoy launcher for enhanced protection against missile threats. Its propulsion system uses a gas turbine direct drive and four high-speed diesel generators driving two electric motors in a combined diesel-electric or gas (CODLOG) configuration, powered by the MT30 gas turbine engine from Rolls-Royce.
