HMS Cardiff, the second Type 26 City Class frigate, is starting to look the part as the vessel continues construction in Govan, Glasgow.

The ship is undergoing structural work before being floated and transported to BAE Systems’ Scotstoun facility in 2024 for outfitting.

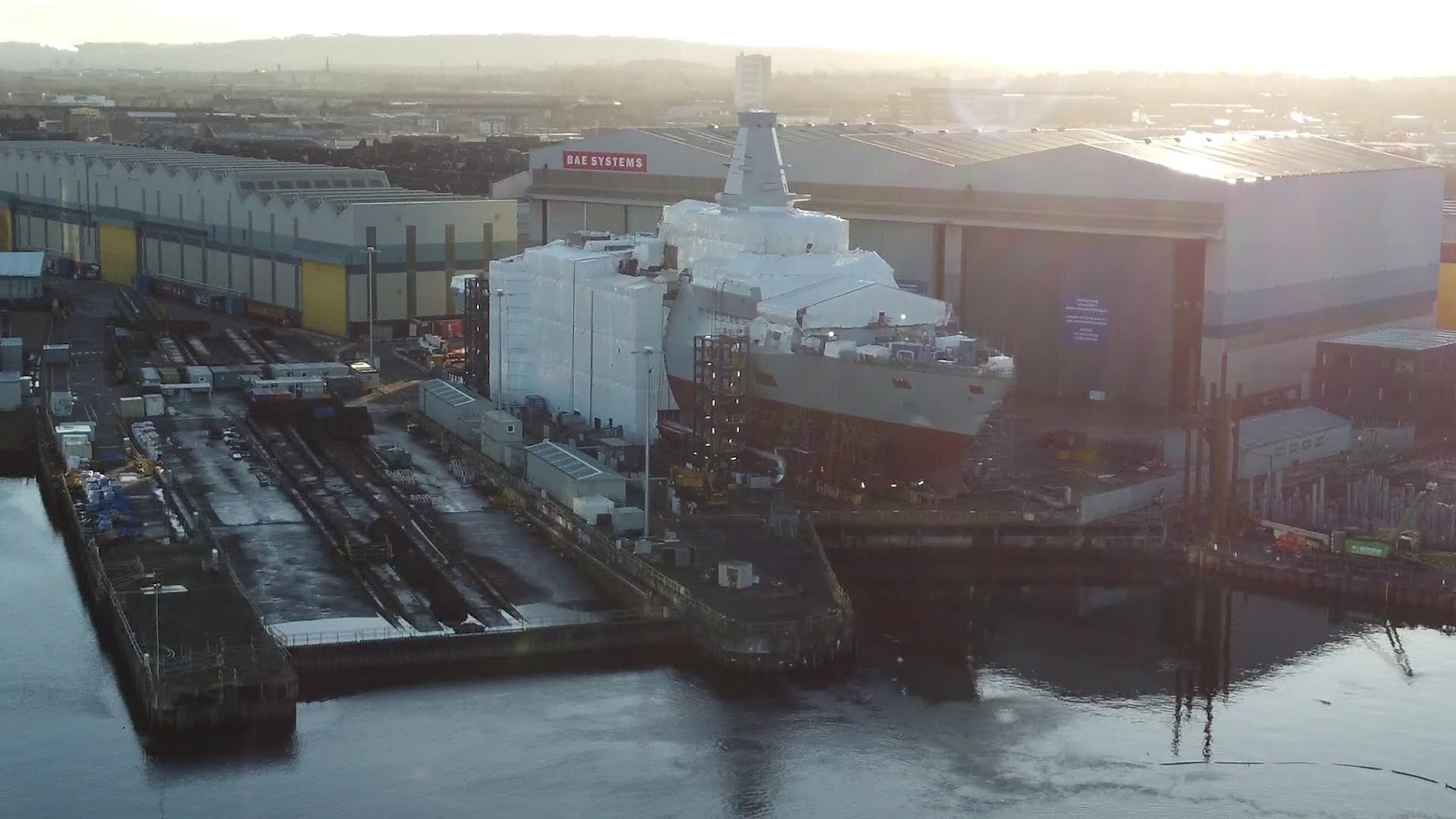

New drone footage shows the build progress of HMS Cardiff, the Royal Navy’s second Type 26 frigate, as the vessel and the future ‘frigate factory’ are being constructed in Glasgow.

For the avoidance of doubt, the drone footage was obtained legally by a qualified person in adherence to UK drone legislation and guidance. In addition, the drone is insured, and a flight plan was submitted using drone safety software.

https://twitter.com/UKDefJournal/status/1739610017890808112

Simon Lister, Managing Director of BAE Systems’ Naval Ships business, previously expressed pride and satisfaction in the progress.

“The emergence of HMS Cardiff is a very proud moment for everyone involved in her construction. We have now completed all major units of the ship and in the coming weeks our skilled teams will consolidate the ship in preparation for next year’s float off,” Lister said.

The first Type 26 frigate, HMS Glasgow, is currently being outfitted at BAE Systems’ Scotstoun facility. The construction of the eight Type 26 frigates is expected to last to the mid-2030s. HMS Glasgow is anticipated to be the first of the fleet to join the Royal Navy in the mid-2020s.

HMS Cardiff will be the last frigate to have its hull sections integrated in the open air on the hardstand. This is due to the construction of a new £100m-plus ship build hall at the Govan site, which will allow the integration process for the remaining six ships to take place under cover, making it less susceptible to weather conditions.

New frigate factory build progress captured by drone

Background

The City Class, also known as the Type 26 frigates, will comprise eight state-of-the-art vessels. The initial trio—HMS Glasgow, Cardiff, and Belfast—are anticipated to join the Royal Navy’s fleet before 2030, with the subsequent additions of HMS Birmingham, Sheffield, Newcastle, Edinburgh, and London expected post-2030. These ships, displacing 6,900 tonnes and stretching 149 metres in length, are designed for efficiency and stealth, boasting a top speed of 26 knots and an impressive range of 7,000 nautical miles.

The City Class ships are equipped with BAE System’s Artisan 3D surveillance radar, an advanced technology capable of monitoring over 800 objects up to 200 kilometres away and cutting through intense radio interference. Accommodating a crew of 208, these ships provide comfortable living quarters, complete with gym facilities, recreation rooms, and a comprehensive medical facility.

In terms of combat and stealth capabilities, the City Class is at the forefront. Primarily focused on anti-submarine warfare, these ships feature acoustically quiet hulls to minimise underwater noise, crucial for the effectiveness of the two electric motors, four high-speed diesel generators, and a gas turbine direct drive. A sophisticated towed sonar array enhances their anti-submarine capabilities, allowing for both active and passive detection, as well as torpedo warning.

The City Class frigates also boast formidable air defence and surface warfare capabilities, equipped with 12 vertical launch system (VLS) cells for the Sea Ceptor surface-to-air missile, complemented by an additional 24 multi-purpose MK 41 VLS cells. Each cell can house four Sea Ceptors, totalling 48 missiles per ship.

The MK 41 VLS adds flexibility, enabling the use of a variety of missiles to counter emerging threats, ensuring these vessels are ready for any eventuality.
