HMS Portland, a Type 23 Frigate, has been fitted with a replacement for the ageing Harpoon missile – the anti-ship and land-attack ‘Naval Strike Missile’.

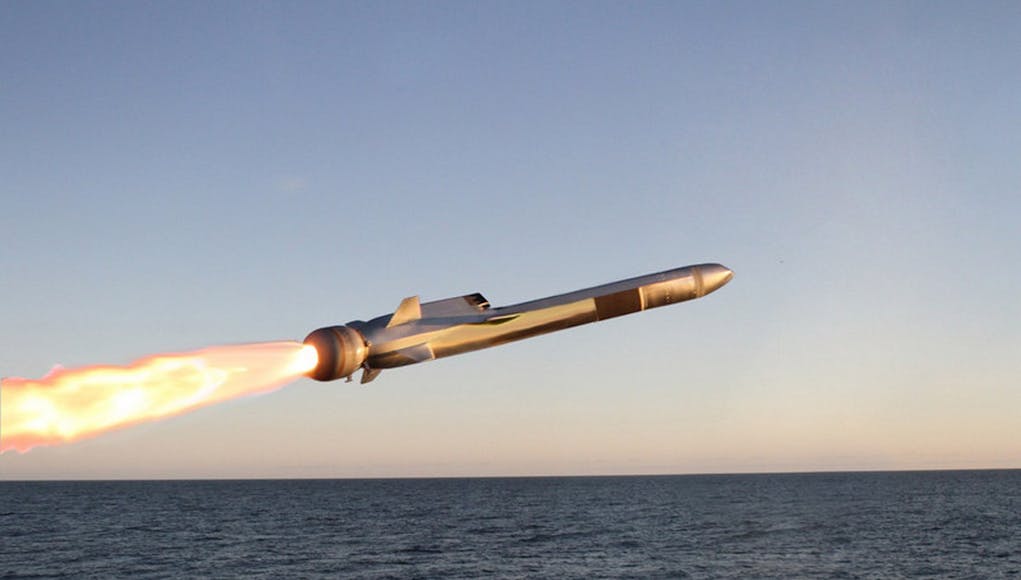

The Naval Strike Missile is an anti-ship and land-attack missile developed by the Norwegian company Kongsberg Defence & Aerospace.

Developed by Norwegian company Kongsberg Defence & Aerospace (KDA), the NSM can target both maritime and land threats. The NSM is distinguished by its airframe design and a high thrust-to-weight ratio, granting it superior manoeuvrability. It operates passively and has demonstrated exceptional sea-skimming capabilities and advanced terminal manoeuvres to elude enemy air defences.

A key feature of the NSM is its Autonomous Target Recognition (ATR), which accurately identifies and strikes the intended target, whether at sea or on land.

Technical specifications of the NSM include a high subsonic speed, a weight of 407 kg (897 lbs), a length of 3.96 m (156 inches), and a range of over 185 km (100 nm). The missile was originally named Nytt sjĆømĆ„lsmissil in Norwegian, translating to “New sea target missile”, and was later marketed in English as the Naval Strike Missile.

Incorporating advanced composite materials, the NSM is designed with stealth capabilities in mind. The missile’s lightweight structure is paired with a high strength titanium alloy blast/fragmentation warhead from TDW, containing insensitive high-explosive. This warhead is activated by a void-sensing Programmable Intelligent Multi-Purpose Fuze, designed to enhance its efficacy against hard targets.

The NSM’s flight characteristics allow it to traverse over landmasses, stay low over the sea, and perform unpredictable manoeuvres in its terminal phase, complicating interception efforts. The missile’s capability to engage both sea and land targets is enhanced by its imaging infrared (IIR) seeker and an onboard target database.

With the UK’s selection of the NSM, it joins several other nations, including Norway, Poland, Malaysia, Germany, the USA, Japan, Romania, Canada, Australia, and Spain, in deploying this missile system.

The Royal Navy will outfit the Naval Strike Missile to a total of eleven Type 23 frigates and Type 45 destroyers in collaboration with the Norwegian government.

Specifications

  • Speed: 0.7 ā€“ 0.9 Mach
  • Weight: 407 kg (897 lbs)
  • Length: 3.96 m (156 inches)
  • Multi-mission: Sea and land targets
  • Range: >100 nm

The builders, Kongsberg, said in a press release in November.

“The collaboration will result in more ships equipped with the highly sophisticatedĀ Naval Strike Missiles which in turn will contribute in enhancing the security in our common areas of interest. Replacing the Harpoon surface-to-surface weapon, due to go out of service in 2023, the world-class anti-ship missile will be ready for operations onboard the first Royal Navy vessel in a little over 12 months.”
