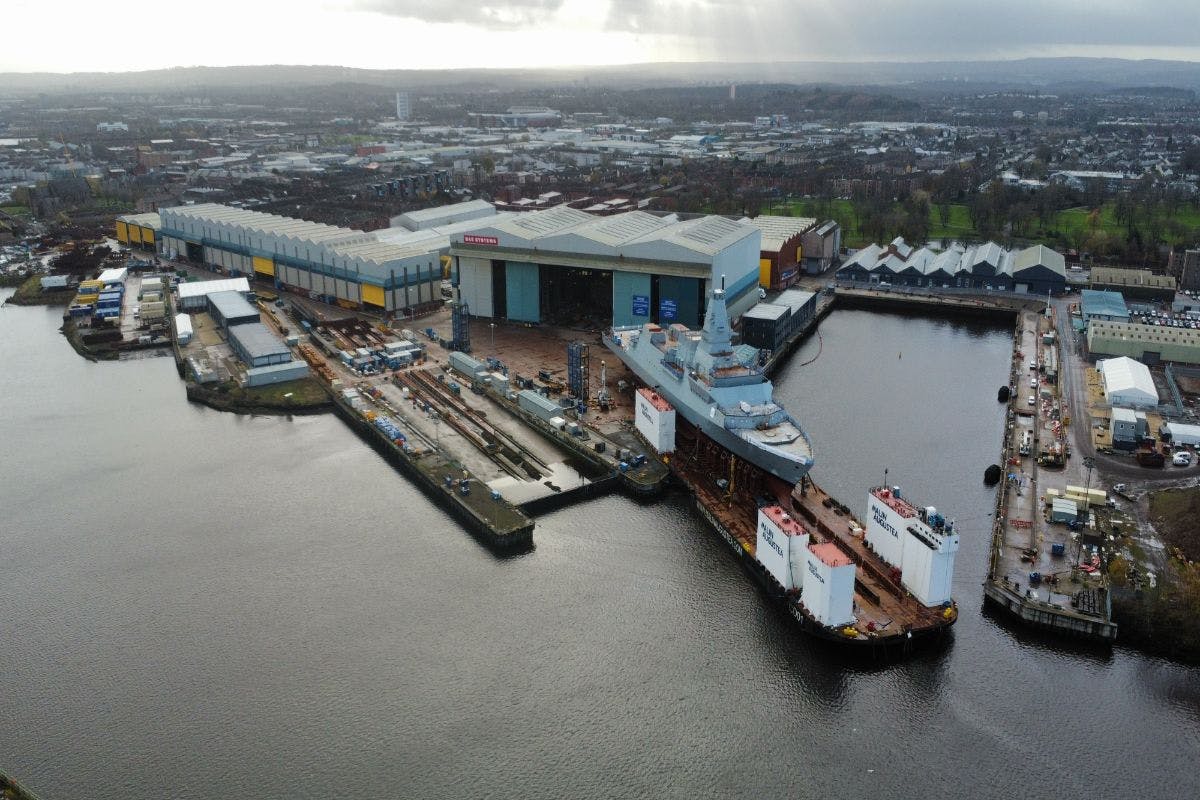

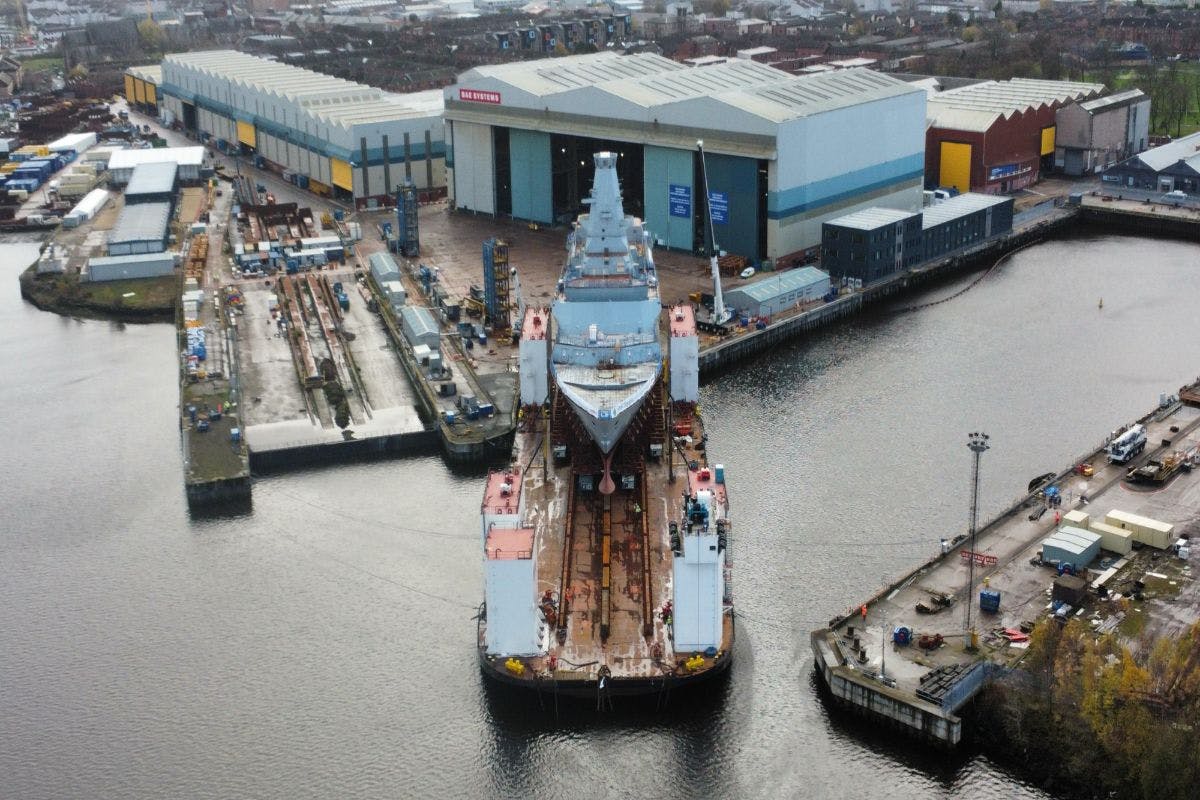

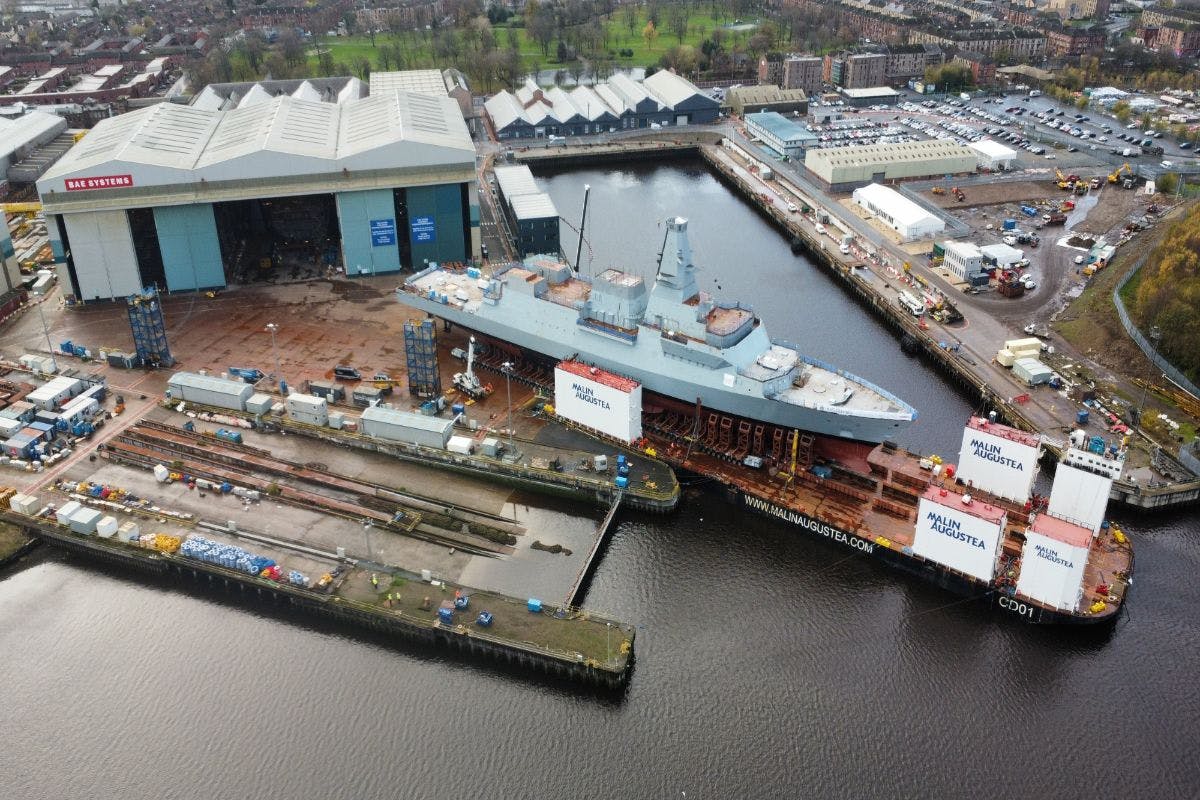

Photos show HMS Glasgow, the first of eight Type 26 Frigates, being moved from land onto a submersible barge before being floated off downriver.

BAE Systems say that over the coming days, the ship, currently weighing nearly 6,000 tonnes, will undertake a series of complex manoeuvres that will move her from BAE Systems’ Govan shipyard, onto a barge before being towed downriver to a deep-water location in the West of Scotland and lowered into the water. The frigate will then be brought back upriver to Scotstoun to continue fitting out.

Not quite a conventional launch, but a launch nonetheless.

“Once in position, the float off will involve the base of the barge being slowly submerged over a number of hours until HMS GLASGOW fully enters the water. She will then return to BAE Systems’ Scotstoun shipyard further along the Clyde, where she will undergo the next stages of outfit before test and commissioning.”

I went to gather photos of the first part of the move before having to leave to head elsewhere for personal reasons but don’t worry, I’ll return soon to collect more imagery and video once the ship is fully secured to the barge.

Ben Wallace, Secretary of State for Defence, said:

“HMS GLASGOW entering the water for the first time marks a major milestone for the Type 26 programme which supports thousands of highly skilled jobs in Scotland and more across the wider UK supply chain. We’re continuing to invest in the British shipbuilding industry to maintain the Royal Navy’s cutting-edge ability to defend our nation, while strengthening our partnership with allies.”

David Shepherd, Type 26 Programme Director, BAE Systems, said:

“Seeing HMS GLASGOW in the water for the first time will be a proud and exciting moment for the thousands of people involved in this great endeavour. She will soon transfer to our Scotstoun yard in Glasgow where we look forward to installing her complex systems and bringing her to life.”

For those wondering how they moved the ship, little wheeled vehicles under the vessel shown below.

The submersible barge was tested last month ahead of the upcoming launch of the new warship.

Frigate carrying submersible barge tested in Glasgow

According to Malin Group, the barge will initially be used to transport and ‘launch’ the Type 26 Frigates being built by BAE Systems for the Royal Navy and then berthed on the Clyde and made available to industry as required, “catalysing further opportunities for the wider supply chain in fields including shipbuilding, civil construction and renewable energy”.

I went along to watch the barge arrive. Here’s the video.

John MacSween, Managing Director of the Malin Group, said:

Securing this piece of equipment marks another positive step forward in the reawakening of the shipping and large-scale marine manufacturing industry in Scotland.  This versatile asset, based on the West Coast of Scotland, can be used for launching and bringing ships ashore, docking vessels locally or at remote locations as well as being used to relocate large structures around the UK and further afield.

We are delighted to continue our long-standing relationship with the internationally renowned tug and barge owner specialists Augustea, as well as work with Hat-San who are bringing years of shipbuilding experience to the conversion. We are also extremely grateful for the support we have had from Scottish Enterprise in making this project a reality.”

The barge is a joint venture between the Malin Abram and Augustea and, now modified, represents one of the largest in Europe – it can submerge to load vessels and cargo with draughts of up to 12m and over 137m in length.

It will be based on the Clyde between projects.
