Acoustic performance, hiding sound, is a critical factor in anti-submarine operations. The Type 26 Frigate takes this to a new level.

Earlier this year, during a visit to BAE Systems’ shipyard in Glasgow, Sir Simon Lister, Managing Director of the company’s Naval Ships division, provided insights to journalists on the engineering efforts behind ensuring that the Type 26 operates with a minimal acoustic signature.

Silence in naval warfare is both a technical challenge and a tactical advantage. Lister described how even the flow of fluid through pipes can impact the ship’s stealth capabilities. By isolating pipes with rubber and designing brackets to reduce noise transmission, the ship becomes less detectable by enemy submarines, ensuring its sonar systems remain unobstructed.

This level of attention to detail extends beyond propulsion systems to all areas of the ship, including firefighting mechanisms and waste management infrastructure.

Keen readers will have noticed large black panels on the side of the vessel and its sisters. Those panels are part of an effort to reduce the noise generated by the vessel, making it harder for enemy submarines to detect.

What are the black sections on the Type 26 Frigate hull?

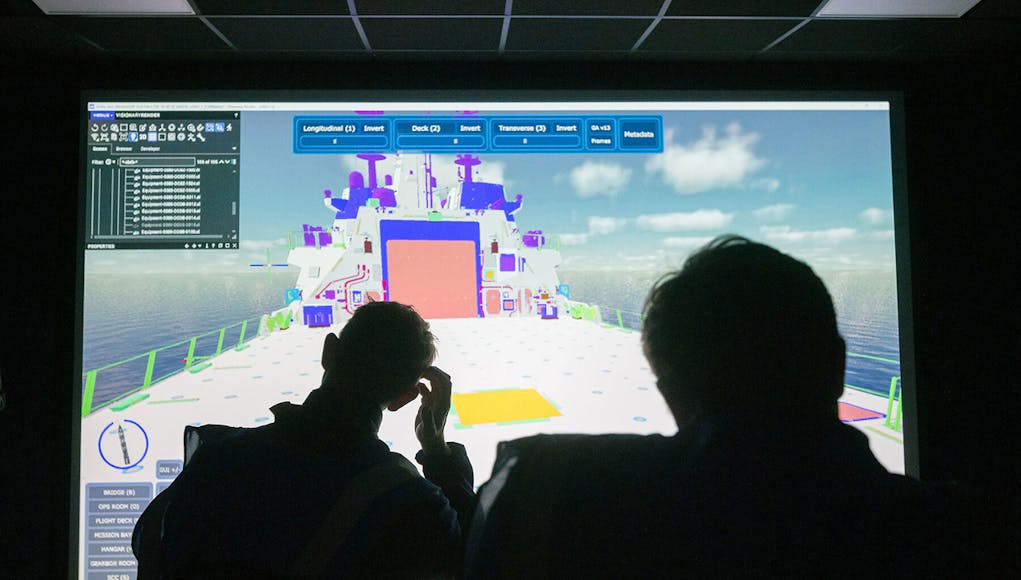

The visit also offered a firsthand look at the progress of HMS Cardiff and her sister ships under construction. The ability to visualise and design the ship in detail provides significant advantages in the shipbuilding process. Advanced tools, such as the visualisation suite at the Glasgow yard, allow engineers and manufacturers to work in an integrated manner, considering the interdependencies of various systems and components.

This technology enables them to determine the best way to install components without relying solely on flat, 2D plans or physical inspections.

The level of detail captured within the visualisation suite demonstrates the capabilities of digital twin technology in modern shipbuilding. The suite can simulate every aspect of the ship’s design, down to the smallest valve, highlighting how these advanced tools are influencing naval engineering and design processes.

Another important aspect of the visit was the emphasis on protecting intellectual property (IP) and sensitive information. The visualisation suite operates in a controlled and restricted environment, ensuring that collaboration among authorised personnel is secure and that access to detailed design components is tightly managed.

This secure environment is essential for maintaining the integrity of the design process and safeguarding the technological innovations that give the Type 26 Frigate and similar projects their competitive edge. Additionally, the secure sharing of information and updates between teams in the UK, Canada, and Australia supports innovation within a trusted network, enabling collaboration without compromising security.
