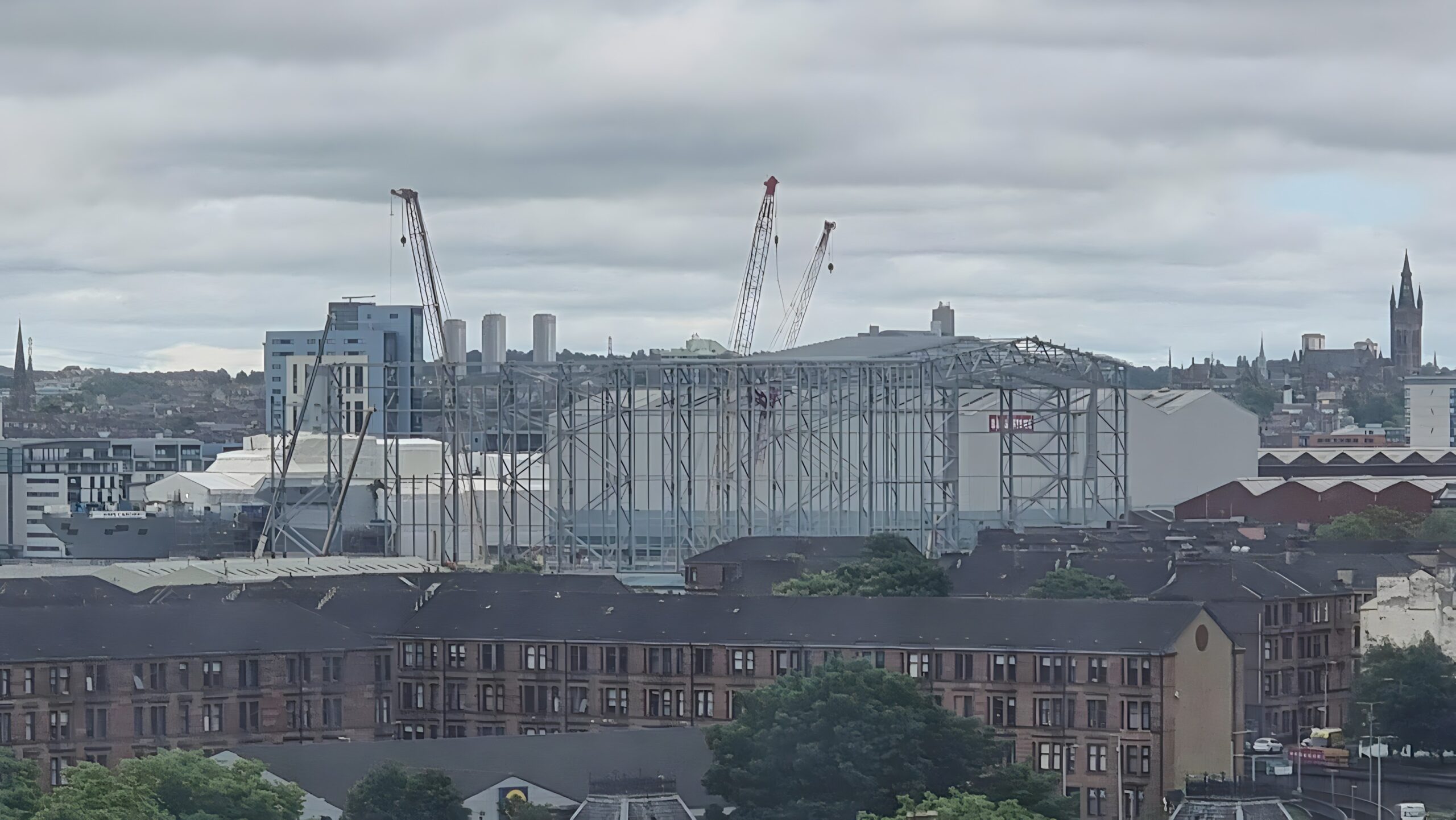

One of the largest buildings in the country, the new frigate factory at the BAE Systems shipyard in Govan, Glasgow, is taking shape.

The massive facility at Govan represents a huge boost in capability for UK naval shipbuilding.

The new ‘frigate factory’ will consist of more than 6,000 tonnes of steel and 20,000m3 of concrete. It will be able to fit two Type 26 Frigates side by side.

Below is how the site looked last year.

I previously reported that planning permission had been granted for a huge new shipbuilding hall at the BAE Systems site in Govan, with work on the first ship to be built in the facility starting soon.

Huge Glasgow ‘frigate factory’ planning permission granted

It is hoped that Type 26 ships 3 to 8 will be assembled in this facility, with the first two being assembled outdoors. HMS Glasgow is shown below when she was being put together on the hard standing, adjacent to the wet basin area after she was built in sections in the existing build hall and joined together.

Image George Allison

The new build hall wil allow ships to be built indoors, protecting them against the elements and would form part of an effort to modernise the yard. In terms of dimensions, the shipbuilding hall will be approximately 81 metres wide, 170 metres long and 49 metres high to the building ridge line. This represents a massive expansion of capabilities and capacity at the yard, as let’s not forget, the original build hall will still be available for use.
